| Product Name |

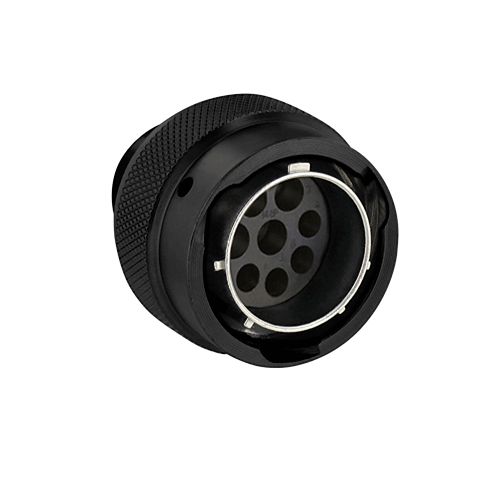

Eaton Souriau UTO series metal IP68/69k connector for intensive use
|
| Catalog Number |
UT06148PH02
|
| Product Length/Depth |
33 mm
|
| Product Height |
29.3 mm
|
| Product Width |
29.3 mm
|
| Product Weight |
23.8 g
|
| Compliances |
UL 1977
Overvoltage category III / pollution degree III |
| Current rating |
17 A IEC
25 A UL |
| Fitted with: |
Layout with ground cavity
Shielding First mate last break capability |
| Environmental conditions |
REACH
Flammability rating UL94 V0 RoHS Fire and smoke rating HL2 R22 and HL2 R23 following EN 45 545 Fire & Smoke |
| Environmental resistance |
Resistant against mineral oil
Shock resistance 30g, 18ms per NFF61030 Resistant against gasoline Shock resistance 50g, 11ms per MIL-C-26482 I Vibrations level 2g per NFF61030 Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against acid bath Resistant against basic bath Resistant against oil |
| Test current |
25 A UL
17 A CSA 17 A IEC |
| Test voltage |
230 V IEC
250 V CSA 250 V UL |
| Connector accessory option |
Not delivered, to be ordered separately
|
| Connector orientation |
N
|
| Connector type |
Plug
|
| Contact delivery |
Not delivered
|
| Contact gender |
Pin (Male)
|
| Contact type |
Crimp
|
| Coupling type |
1/3 Bayonet
|
| Degree of protection |
IP68
|
| Insert material |
Polyamide
|
| Plating |
Black Anodized
|
| Plug type |
Straight Plug
|
| Shell material |
Zinc alloy
|
| Shell size |
14
|
| Mating cycles |
500
|
| Operating temperature - max |
105 °C
|
| Operating temperature - min |
-40 °C
|
| Number Of Contacts |
8
|
| Number of cavity #16 |
4
|
| Salt spray |
96 hour
|
