| Product Name |

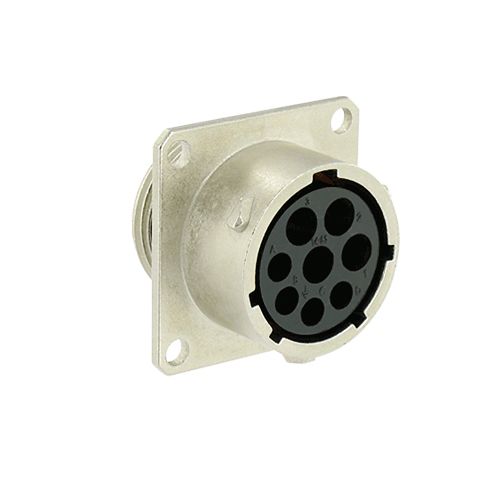

Eaton Souriau UTO series metal IP68/69k connector for intensive use
|
| Catalog Number |
UT00148SH
|
| Compliances |
UL 1977
Overvoltage category III / pollution degree III |
| Current rating |
17 A IEC
25 A UL |
| Fitted with: |
Shielding
Layout with ground cavity First mate last break capability |
| Environmental conditions |
REACH
Fire & Smoke RoHS Flammability rating UL94 V0 Fire and smoke rating HL2 R22 and HL2 R23 following EN 45 545 |
| Environmental resistance |
Resistant against gasoline
Resistant against basic bath Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against acid bath Vibrations level 2g per NFF61030 Shock resistance 30g, 18ms per NFF61030 Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I Resistant against mineral oil Resistant against oil |
| Test current |
17 A CSA
17 A IEC 25 A UL |
| Test voltage |
250 V UL
250 V CSA 230 V IEC |
| Connector accessory option |
Not delivered, to be ordered separately
|
| Connector orientation |
N
|
| Connector type |
Receptacle
|
| Contact delivery |
Not delivered
|
| Contact gender |
Socket (Female)
|
| Contact type |
Crimp
|
| Coupling type |
1/3 Bayonet
|
| Degree of protection |
IP67
|
| Insert material |
Polyamide
|
| Plating |
Nickel
|
| Shell material |
Zinc alloy
|
| Shell size |
14
|
| Mating cycles |
500
|
| Operating temperature - max |
105 °C
|
| Operating temperature - min |
-40 °C
|
| Receptacle type |
Square Flange Receptacle
|
| Number Of Contacts |
8
|
| Number of cavity #16 |
4
|
| Salt spray |
96 hour
|
