| Product Name |

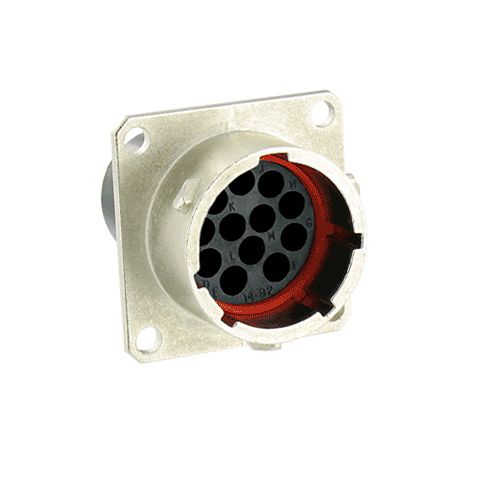

Eaton Souriau UTO series metal IP68/69k connector for intensive use
|
| Catalog Number |
UT001492PWH6
|
| Product Length/Depth |
33.2 mm
|
| Product Height |
28.6 mm
|
| Product Width |
28.6 mm
|
| Product Weight |
23.9 g
|
| Compliances |
Overvoltage category III / pollution degree III
UL 1977 |
| Current rating |
10 A IEC
10 A UL |
| Fitted with: |
First mate last break capability(optional)
Shielding Last mate first break capability(optional) |
| Environmental conditions |
Fire & Smoke
REACH RoHS Flammability rating UL94 V0 Fire and smoke rating HL2 R22 and HL2 R23 following EN 45 545 |
| Environmental resistance |
Vibrations level 2g per NFF61030
Resistant against acid bath Resistant against mineral oil Shock resistance 30g, 18ms per NFF61030 Shock resistance 50g, 11ms per MIL-C-26482 I Resistant against basic bath Resistant against oil Resistant against gasoline Vibrations level 55-2000 Hz, 15g per MIL-C-26482 I |
| Test current |
7 A CSA
10 A UL 10 A IEC |
| Test voltage |
150 V IEC
500 V CSA 500 V UL |
| Connector accessory option |
Not delivered, to be ordered separately
|
| Connector orientation |
W
|
| Connector type |
Receptacle
|
| Contact delivery |
Not delivered
|
| Contact gender |
Pin (Male)
|
| Contact type |
Crimp
|
| Coupling type |
1/3 Bayonet
|
| Degree of protection |
IP68
|
| Insert material |
Polyamide
|
| Layout |
92
|
| Plating |
Nickel
|
| Shell material |
Zinc alloy
|
| Shell size |
14
|
| Mating cycles |
500
|
| Operating temperature - max |
105 °C
|
| Operating temperature - min |
-40 °C
|
| Receptacle type |
Square Flange Receptacle
|
| Number Of Contacts |
12
|
| Number of cavity #16 |
12
|
| Salt spray |
96 hour
|
